hashi_vault backend

Overview

hashi_vault backend connects directly to the Vault instance (works with both HashiCorp Vault and OpenBao). There are several authentication mechanisms available (token, userpass, jwt etc.).

With this backend certificates and keys are not stored on ansible controller. Instead, they are installed directly on target hosts.

Prerequisites

• Fully configured Vault instance(either HashiCorp Vault or OpenBao)

• PKI engine enabled for all used paths (pki_root/ and pki_int/ by default)

• Vault’s role(pki_hashi_vault_role) defined in pki_hashi_vault_engine_mount_point. This role defines the rules and constraints under which certificates can be issued. Example: bao write pki_int/roles/default allowed_domains=yourfqdn.com allow_subdomains=true ttl=90d

Limitations

• hashi_vault backend issues certificates using a default issuer from engine_mount_point. So there can be only one effective issuer in each engine_mount_point

• community.hashi_vault.vault_pki_generate_certificate does not allow to pass key_usage or extended_key_usage parameter when generating a service certificate. These parameters need to be configured in Vault’s role configuration. Default Vault’s role configuration should work perfectly fine because it has both “TLS Web Server Authentication” and “TLS Web Client Authentication” in extended key usage).

PKI paths explained

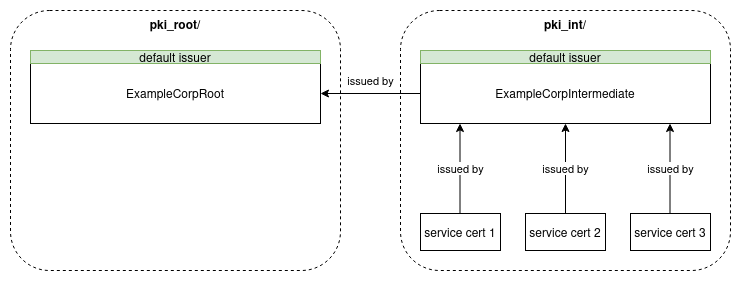

Below diagram explains basic Vault architecture with two Vault paths. There are several important things to notice:

• pki_root/ path stores root certificate (it’s a default issuer in that path)

• pki_int/ path stores intermediate certificate (it’s a default issuer in that path)

• services certs signed by intermediate certificate are also stored in pki_int/ path

• intermediate certificate is signed by the default issuer from the path specified in signed_by (root certificate is not directly specified, only the path where it resides)

• when issuing service cert, engine_mount_point parameter points to the path where certificate will be stored (default issuer from that path will sign the certificate)

Variables

pki_authorities

Variable	Required	Description
add_basic_constraints	𐄂	Whether to add a Basic Constraints extension with CA: true.
alt_names	𐄂	Specifies the requested Subject Alternative Names, in a comma-delimited list.
backend	𐄂	PKI backend that should be used for this certificate.
cn	✔	Common name of a certificate.
country_name	𐄂	Specifies the C (Country) values in the subject field of the resulting certificate.
exclude_cn_from_sans	𐄂	If true, the given common_name will not be included in DNS or Email Subject Alternate Names (as appropriate).
format	𐄂	Specifies the format for returned data.
issuer_name	𐄂	Provides a name to the specified issuer.
key_bits	𐄂	Specifies the number of bits to use for the generated keys.
key_format	𐄂	Specifies the private key format.
key_name	𐄂	When a new key is created with this request, optionally specifies the name for this.
key_ref	𐄂	Specifies the key (either default, by name, or by identifier) to use for generating this request.
key_type	𐄂	Specifies the desired key type; must be rsa, ed25519 or ec.
key_usage	𐄂	Specifies the allowed key usage constraint on issued certificates.
locality_name	𐄂	Specifies the L (Locality) values in the subject field of the resulting certificate.
max_path_length	𐄂	Specifies the maximum path length to encode in the generated certificate.
name	✔	Name of the certificate (used mainly to find the right authority when installing it on target hosts).
not_after	𐄂	Set the Not After field of the certificate with specified date value.
organization_name	𐄂	Specifies the O (Organization) values in the subject field of the resulting certificate.
organization_unit_name	𐄂	Specifies the OU (OrganizationalUnit) values in the subject field of the resulting certificate.
permitted_dns_domains	𐄂	A comma separated string (or, string array) containing DNS domains for which certificates are allowed to be issued or signed by this CA certificate.
san	𐄂	A dictionary containing dns, ip, uri and other SANs.
serial_number	𐄂	Specifies the requested Subject’s named Serial Number value, if any.
state_or_province_name	𐄂	Specifies the ST (Province) values in the subject field of the resulting certificate.
ttl	𐄂	Specifies the requested Time To Live (after which the certificate will be expired).
vault_path	✔	Vault path where the certificate should be stored.
signed_by	𐄂	Vault path of the issuing certificate.

pki_install_ca

Variable	Required	Description
filename	𐄂	Name for the file containing the authority on the target hosts
name	✔	Name of the authority to install

pki_certificates

Variable	Required	Description
backend	𐄂	PKI backend that should be used for this certificate.
cn	✔	Common name of a certificate.
engine_mount_point	𐄂	Vault path where the certificate should be stored.
exclude_cn_from_sans	𐄂	If true, the given common_name will not be included in DNS or Email Subject Alternate Names (as appropriate).
format	𐄂	Specifies the format for returned data.
key_format	𐄂	Specifies the private key format.
name	✔	Name of the certificate (used mainly to find the right certificate when installing it on target hosts).
role	𐄂	Vault’s role that should be used for generating certificate.
san	𐄂	A dictionary containing dns, ip, uri and other SANs.
ttl	𐄂	Specifies the requested Time To Live (after which the certificate will be expired).

pki_install_certificates

Variable	Required	Description
name	✔	Name of the certificate that should be installed on a target host.
dest	✔	Path where certificate should be stored on a target host.
group	𐄂	Name of the group that should own the filesystem object, as would be fed to chown.
mode	𐄂	The permissions the resulting filesystem object should have.
owner	𐄂	Name of the user that should own the filesystem object, as would be fed to chown.
type	✔	Specifies the content that should be placed in a destination file. Accepted values: certificate, certificate_chain, ca_bundle, private_key.
